What Is a Trough Idler Bracket Set?

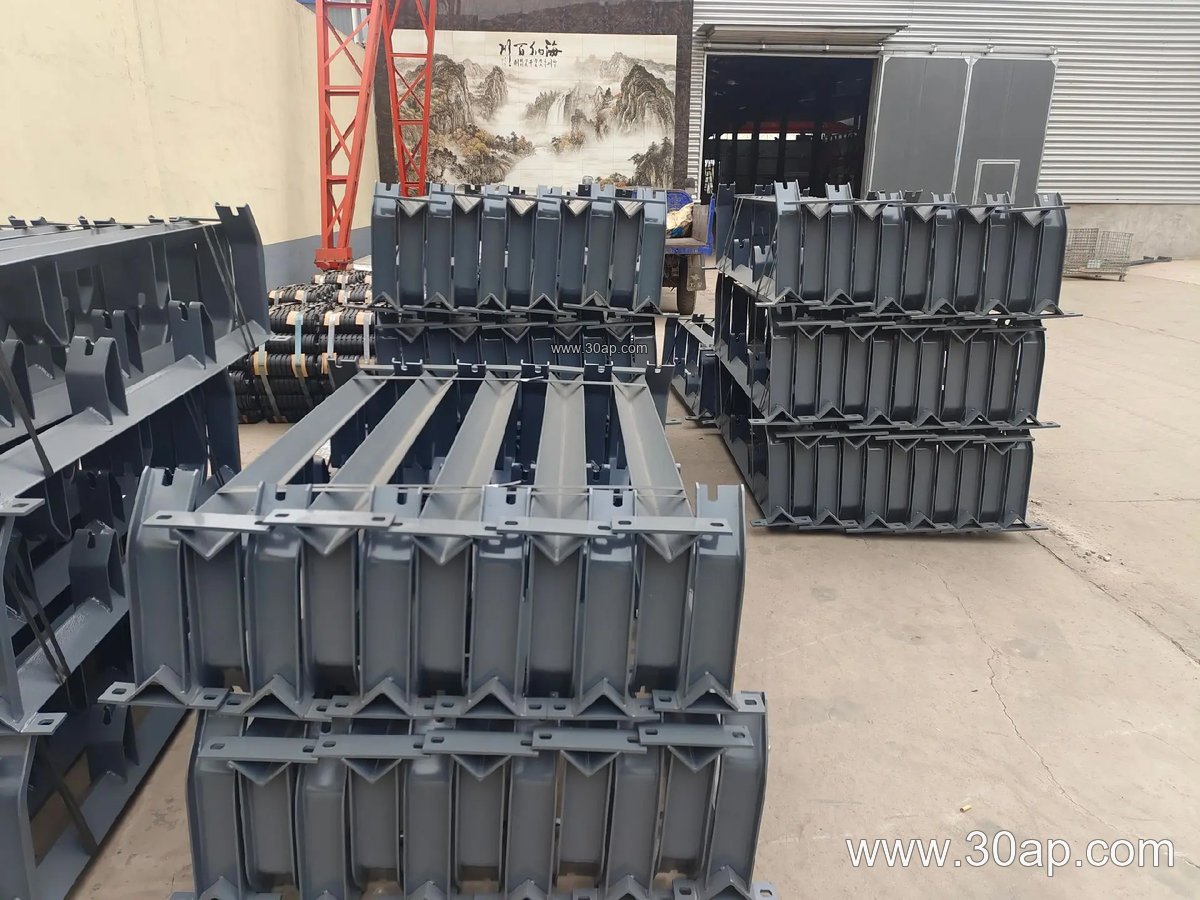

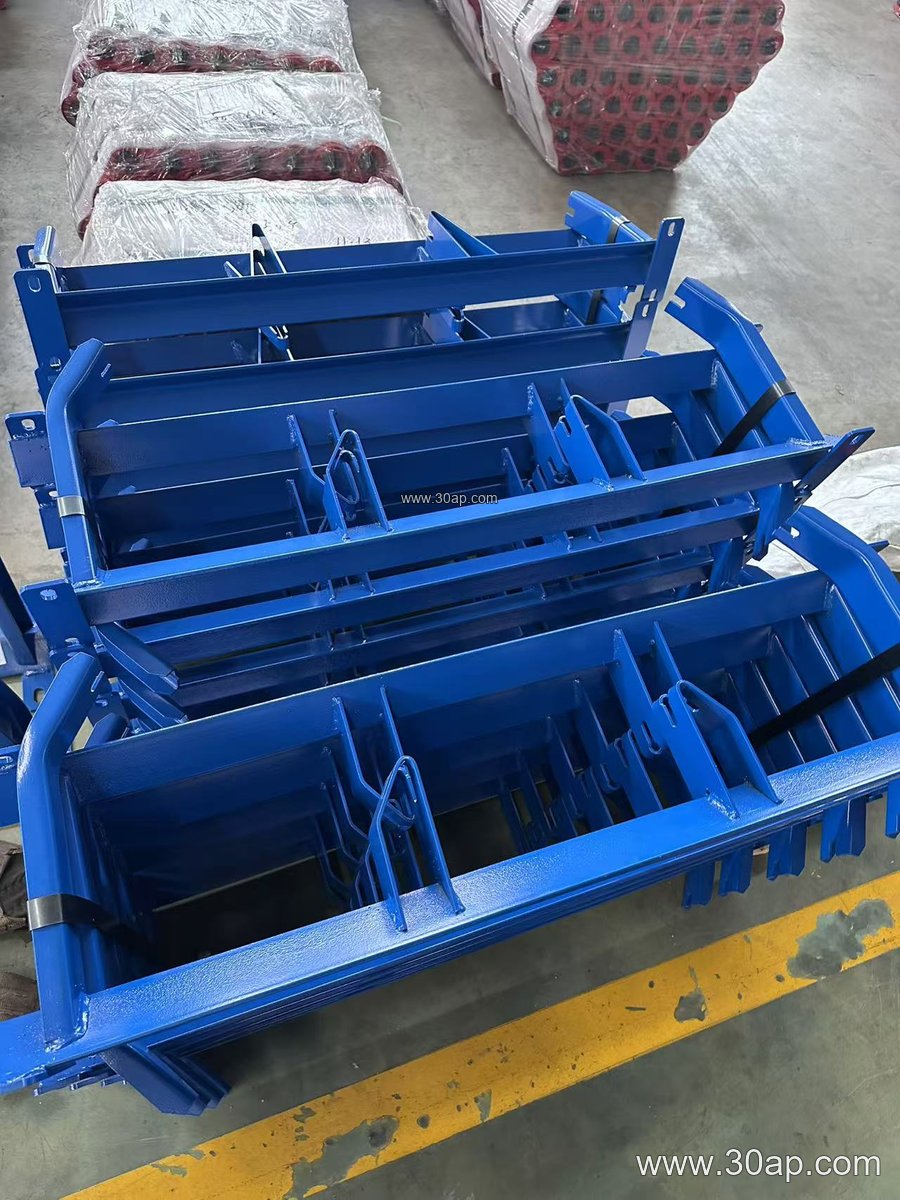

A trough idler bracket set is the structural assembly that holds the idler rollers in a troughed configuration on the carrying side of a conveyor. It typically consists of a base frame or crossbeam, mounting plates, and angled supports that position the center roller horizontally and the two side rollers at an incline. This arrangement gives the conveyor belt a trough shape, which helps contain bulk material and keeps it centered during transport.
In industries such as mining, coal preparation, cement plants, power plant coal handling, and quarry operations, the trough idler bracket set works together with the conveyor belt and idler roller to maintain smooth material flow. Without a properly aligned bracket set, the belt may mistrack, spillage may increase, and roller life may be shortened.
Construction and Key Components
Most trough idler bracket sets are fabricated from angle steel, channel steel, or bent steel plate. The choice of material and thickness depends on the load and the conveyor width. A typical set includes:
- Crossbeam or base frame – the main horizontal support that spans the conveyor structure.
- Side brackets – angled supports that hold the side rollers at the desired trough angle.
- Center bracket – positions the center roller and maintains alignment.
- Mounting holes or slots – for fixing the set to the conveyor stringer or frame.
The trough angle is a critical parameter. Common angles include 20°, 30°, 35°, and 45°. Adjustable bracket sets allow the angle to be changed within a range, which is useful when handling materials with different flow characteristics.
Where It Is Used
Trough idler bracket sets are found on the carrying side of belt conveyors in many bulk handling operations. In a sand and gravel plant, they support the belt that carries crushed stone and aggregate. In a coal washing plant, they help keep coal contained and centered. In a cement plant, they are used on clinker and raw material conveyors. The bracket set must match the belt width and the roller diameter to ensure proper fit and function.
For example, a conveyor with a 800mm conveyor belt might use a bracket set designed for B800, with a 35° trough angle and Ø108 idler rollers. A wider 1200mm conveyor belt could use B1200 brackets with a 45° angle and Ø133 rollers. These are common combinations, but the final selection depends on the conveyor design and material characteristics.
Selection and Compatibility
When choosing a trough idler bracket set, buyers should consider the following:
- Belt width – the bracket set must match the conveyor belt width, such as B500, B650, B800, B1000, B1200, B1400, B1600, B1800, B2000, or B2200.
- Roller diameter – common idler roller diameters include Ø89, Ø108, Ø133, Ø159, and Ø194. The bracket mounting must accommodate the chosen roller diameter.
- Trough angle – 20°, 30°, 35°, and 45° are typical. Adjustable brackets offer flexibility.
- Material and load – heavier materials and higher capacities may require thicker steel or reinforced designs.
- Mounting dimensions – hole spacing and crossbeam length vary with belt width and trough angle. These should be confirmed with the conveyor frame design.
It is important to note that a given belt width does not dictate a single trough angle or roller diameter. The bracket set should be selected as part of the overall conveyor design, considering the material being conveyed and the operating conditions.
Maintenance and Replacement
Regular inspection of the trough idler bracket set helps prevent unplanned downtime. Check for loose bolts, bent brackets, or worn mounting points. When replacing a bracket set, ensure the new set matches the existing conveyor frame and roller dimensions. Using a bracket set that is not compatible with the conveyor pulley alignment or the belt training can lead to tracking problems.
In dusty or corrosive environments, such as a fertilizer plant or a port terminal, consider bracket sets with appropriate surface protection. Proper installation and periodic checks keep the conveyor belt running smoothly and extend the service life of the idler rollers.
Summary
The trough idler bracket set is a small but vital component of a belt conveyor system. By understanding its construction, typical applications, and selection criteria, buyers can make informed decisions that support efficient material handling in mining, cement, power, and aggregate operations.
