What an Adjustable Conveyor Bracket Does

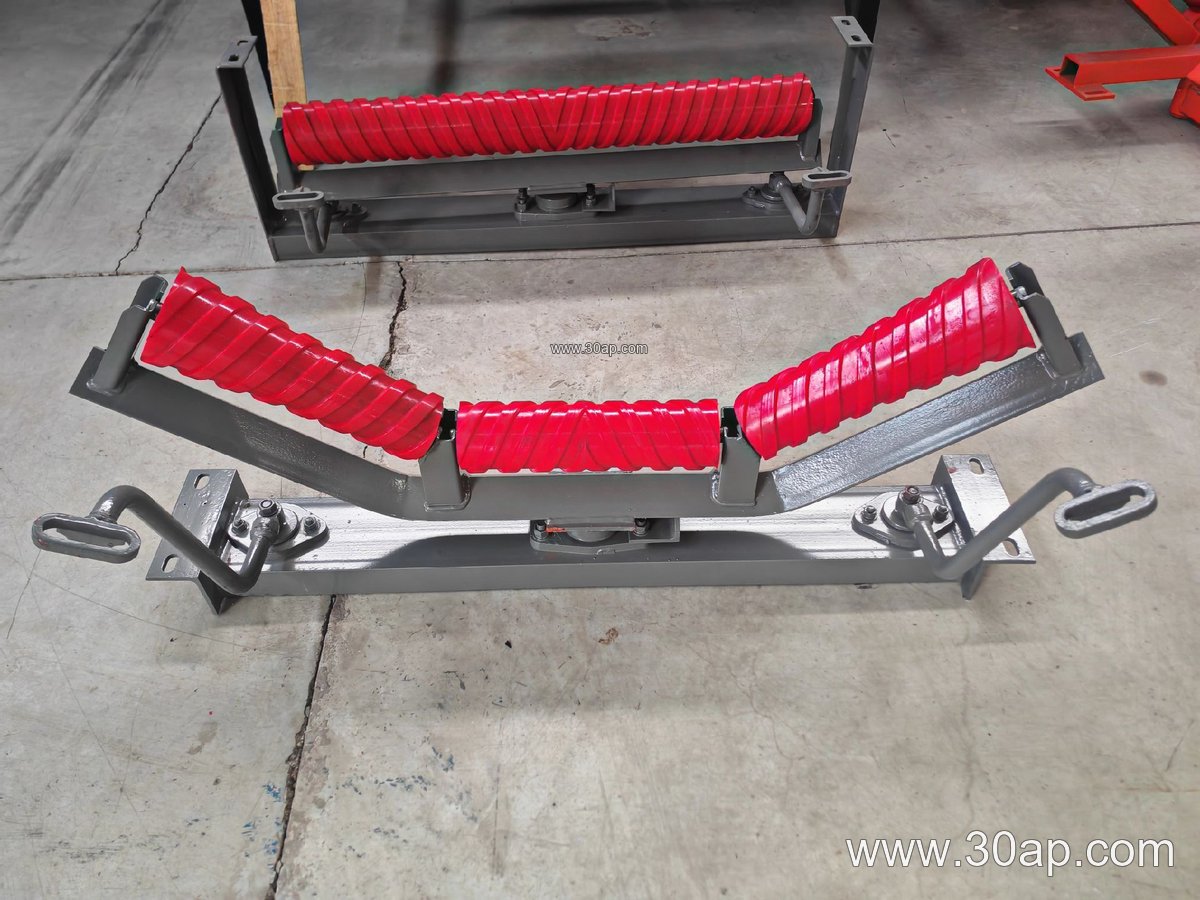

An adjustable conveyor bracket is a support component that holds idler rollers at a chosen position under the conveyor belt. Unlike a welded fixed bracket, this bracket lets maintenance staff change the trough angle, the roller spacing, or the lateral position of a roller set after installation. On a coal handling line or a limestone crushing circuit, that small range of movement often decides whether the belt tracks cleanly or rubs the frame.
The same component is also called an adjustable idler bracket or adjustable roller support bracket. It is not a drive pulley, a tail pulley, or a bend pulley, and it should not be confused with those parts. Its job is to carry and position idlers, not to transmit drive torque or redirect the belt path.
Construction and Adjustment Features

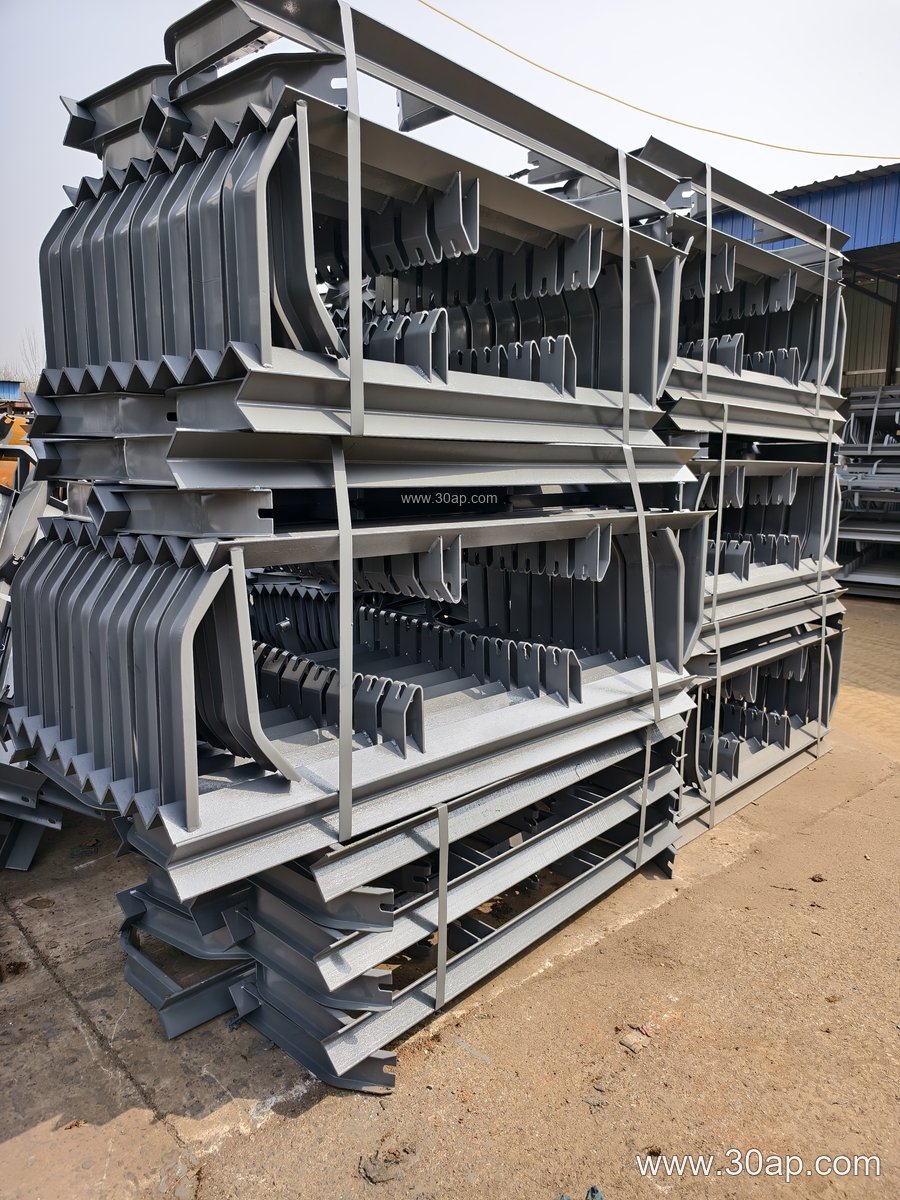

Most units are fabricated from angle steel, channel steel, or folded steel plate, then drilled or slotted so the roller shaft can be repositioned. Common adjustment methods include slotted mounting holes, pivoting arms, and stacked shim plates. A locking bolt or clamp holds the setting once the fitter is satisfied with belt contact.
- Slotted holes allow lateral shifting for belt centering.
- Pivot or hinge points change the trough angle in steps or continuously.
- Reinforced gussets resist vibration on vibrating screens and crusher discharge points.
- Galvanized or painted finishes suit dusty and damp locations.
Because the bracket works together with the conveyor belt, the idler roller, and the frame, alignment should be checked across several idler stations rather than at one point only.
Where It Fits in a Conveyor
Adjustable brackets appear on the carrying side as troughing supports, at transition zones near pulleys, and on the return side as flat or V-return supports. In a cement plant they are often used where material loading changes the belt profile. In a sand and gravel line they help fine-tune troughing after a chute modification. On a power plant coal conveyor they can correct slight misalignment caused by frame settlement.
A transition bracket and a troughing bracket are different subtypes with different geometry; the adjustable version of either still serves its own position in the frame. For comparison, a fixed troughing bracket is simpler and cheaper but offers no field correction, while an adjustable bracket costs more and needs periodic bolt checks.
Common Reference Dimensions
The values below are typical reference ranges, not universal specifications. Final hole spacing, beam length, and roller drop are determined by the conveyor design, belt width, and selected trough angle.
| Item | Common reference values |
|---|---|
| Belt width | B500, B650, B800, B1000, B1200, B1400, B1600, B1800, B2000, B2200 |
| Trough angle | 20, 30, 35, 45 degrees (adjustable within range) |
| Idler diameter | Ø89, Ø108, Ø133, Ø159, Ø194 |
| Forward tilt | about 1.5 to 2 degrees where specified |
| Material | angle steel, channel steel, folded plate |
Examples such as B800 with 35 degrees and Ø108, or B1200 with 45 degrees and Ø133, are combinations seen in practice. They are not fixed pairings, and a given belt width can accept more than one trough angle or roller diameter.
Buyer Checklist
- Confirm the bracket subtype: troughing, transition, return, V-return, impact, or self-aligning.
- State belt width, required trough angle range, and idler diameter.
- Ask for the mounting hole pattern and confirm it matches the existing frame.
- Check adjustment travel and locking method, especially on high-vibration stations.
- Match material and finish to the site: washdown, dust, or outdoor exposure.
- Plan a re-torque interval, since adjustable joints can loosen over time.
Correctly set, an adjustable conveyor bracket keeps the belt seated on its idlers, reduces edge wear, and makes future alignment work faster in mines, quarries, cement works, and bulk terminals alike.
