1. Overview

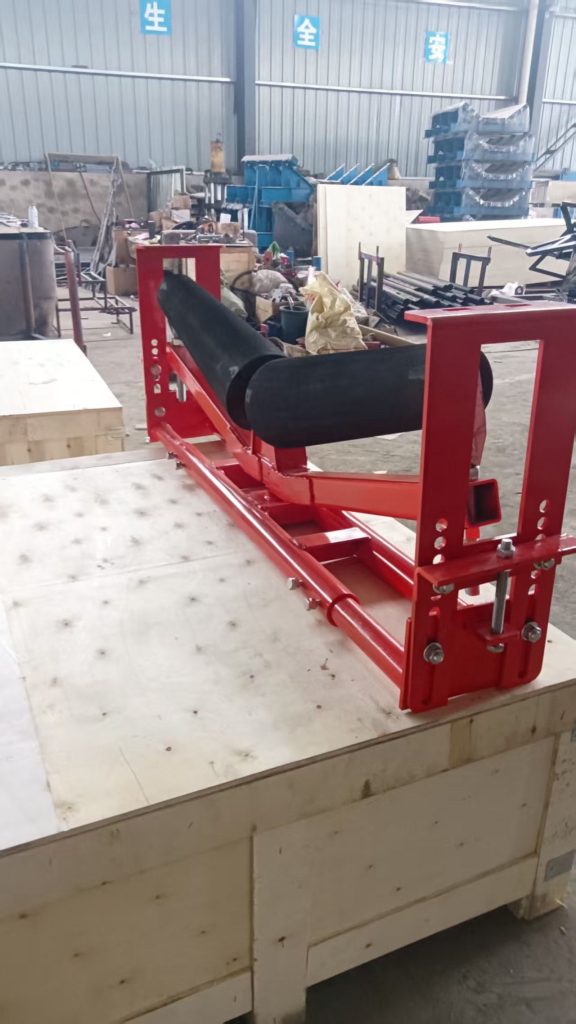

The mechanical dynamic balance tapered roller belt tracking device is a conveyor belt alignment solution based on a mechanical self-adaptive principle. It is designed to solve belt misalignment problems during conveyor operation. Through the coordinated action of tapered rollers and a self-aligning frame, the device achieves continuous automatic correction without the need for electrical or hydraulic power.
Compared with traditional parallel rollers, the tapered roller design generates differential speed and lateral guiding force when belt deviation occurs, guiding the belt back to the center and achieving dynamic balance.
This product is especially suitable for harsh working conditions, limited maintenance environments, and applications requiring high reliability.
2. Working Principle (Detailed)
When the conveyor belt runs normally, the tapered rollers contact the belt evenly, and the system remains in a balanced state.
When the belt deviates to one side, the following process occurs:
- Contact Variation
The contact area between the belt and tapered rollers changes, resulting in uneven friction on both sides - Differential Speed Generation
Different diameters of the tapered roller create varying linear speeds, generating a lateral guiding force - Swing Response
The self-aligning frame deflects slightly under force, amplifying the tracking effect - Automatic Re-centering
Under the lateral restoring force, the belt gradually returns to the center position, achieving dynamic tracking
The entire process requires no external power and relies solely on the mechanical interaction during belt operation.

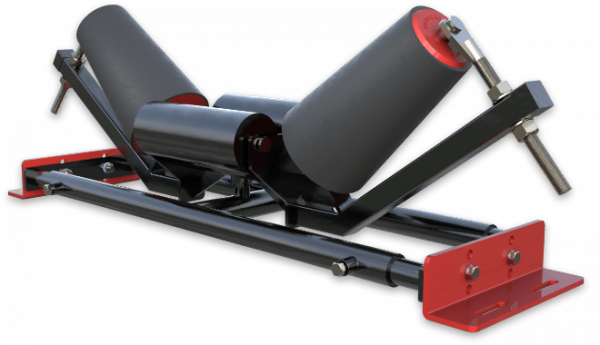

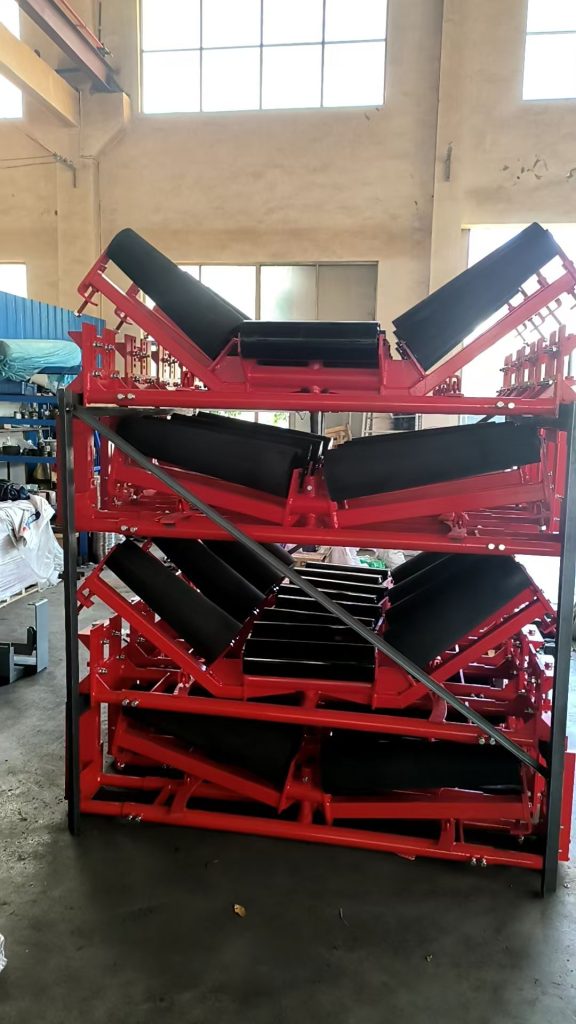

3. Structure Components
The device mainly consists of:
- Tapered rollers (core component)
- Self-aligning frame
- Swing/pivot mechanism
- Bearing system (sealed for durability)
- Base and mounting structure
4. Key Features
1. Power-Free Operation
No electricity, hydraulic, or pneumatic system required, reducing operating cost
2. Dynamic Balance Adjustment
Automatically adjusts according to belt condition for continuous stable tracking
3. High Sensitivity
Quick response to slight misalignment, preventing further deviation
4. Strong Adaptability
Suitable for dusty, wet, heavy-load, and harsh environments
5. Low Maintenance
Simple structure with low failure rate; only periodic inspection required
6. Extended Service Life
Reduces belt edge wear and roller damage
5. Technical Parameters (Typical)
| Item | Parameter Range |
|---|---|
| Applicable belt width | 500 – 2400 mm |
| Roller diameter | 89 / 108 / 133 / 159 mm |
| Roller type | Tapered roller |
| Belt speed | ≤ 4.5 m/s |
| Installation type | Carrying / return side |
| Working temperature | -20°C ~ +60°C |
| Tracking method | Mechanical automatic tracking |
(Customization available upon request)

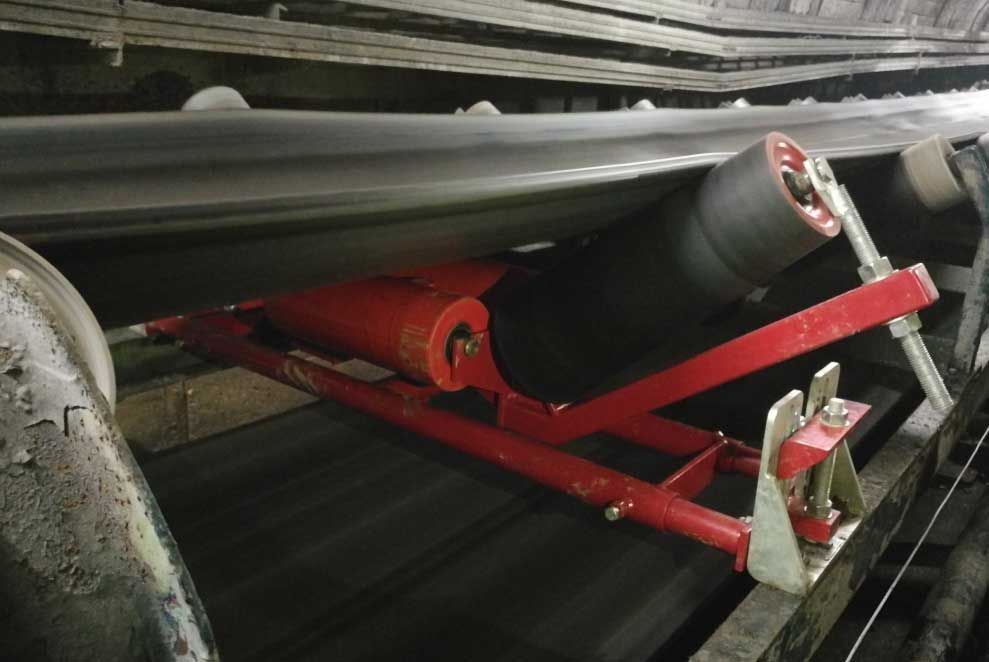

6. Installation Instructions (Key Points)
For optimal performance, follow these recommendations:
- Install at positions prone to belt misalignment
- Typical locations: head, tail, and intermediate sections
- Multiple units can be installed at intervals (typically 30–50 meters)
- Ensure alignment with conveyor centerline
- Ensure a solid and stable mounting foundation
7. Applications
Suitable for various belt conveyor systems:
- Mining industry (coal, iron ore, aggregates)
- Ports and terminals
- Cement and building materials industry
- Power plant coal handling systems
- Metallurgy and heavy industry conveying lines
8. Comparison with Other Tracking Methods
| Type | Advantages | Disadvantages |
|---|---|---|
| Mechanical tapered roller tracker | No power required, low cost, high reliability | Lower accuracy than hydraulic/electric systems |
| Hydraulic tracking device | Strong force, precise control | High cost, complex maintenance |
| Electric tracking system | High automation level | High investment, sensitive to environment |
9. Summary of Advantages
- Cost-effective and practical
- Easy installation and maintenance
- No additional energy required
- Suitable for most conveyor systems
- Especially suitable for markets in Africa, South America, and the Middle East
