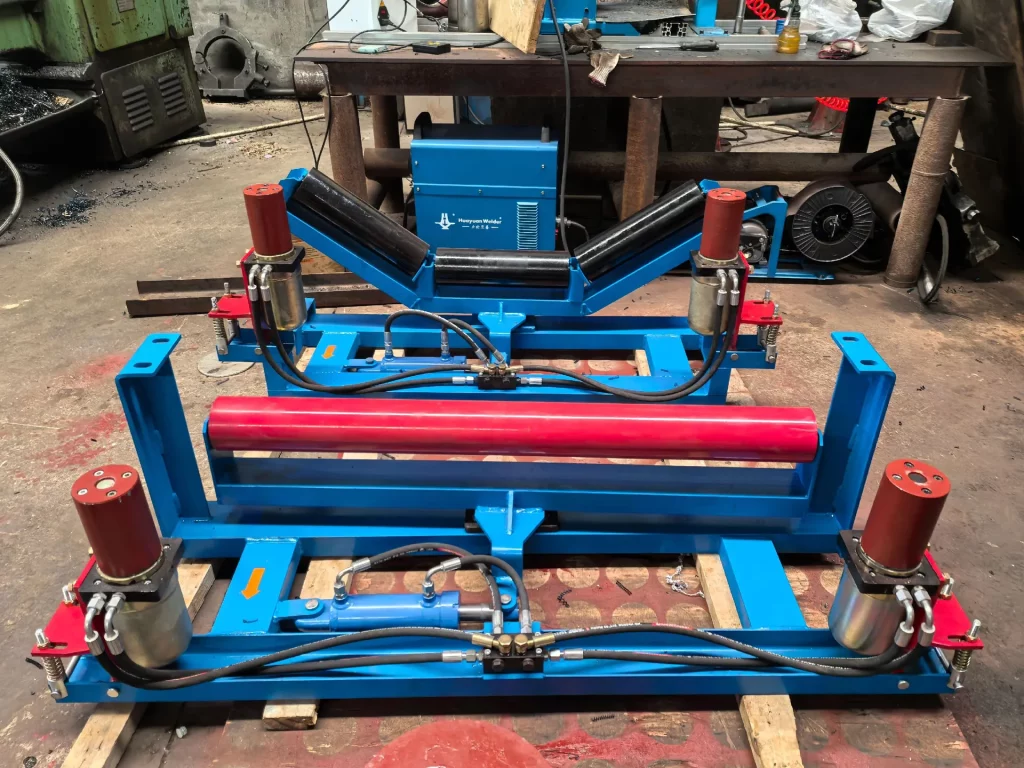

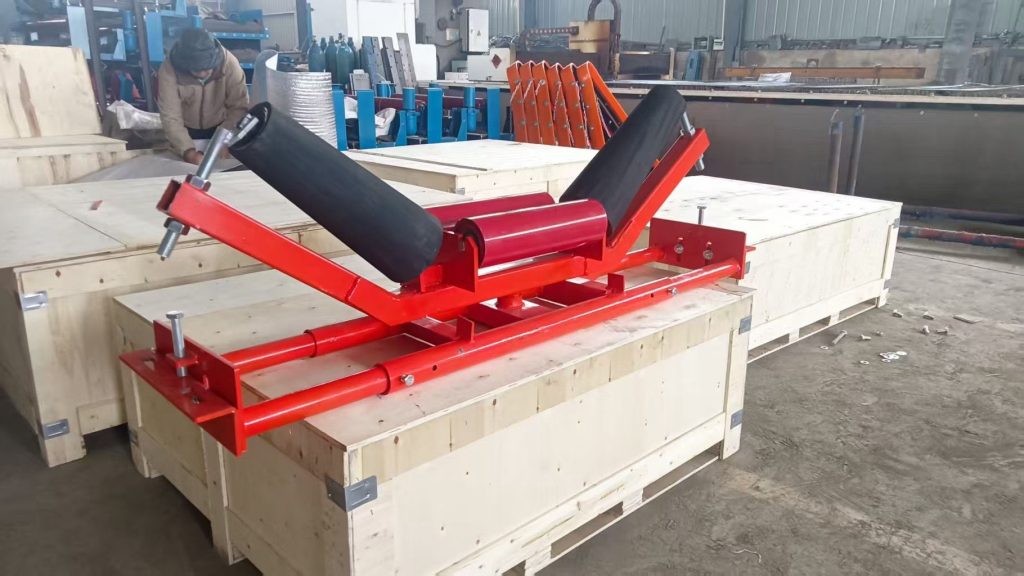

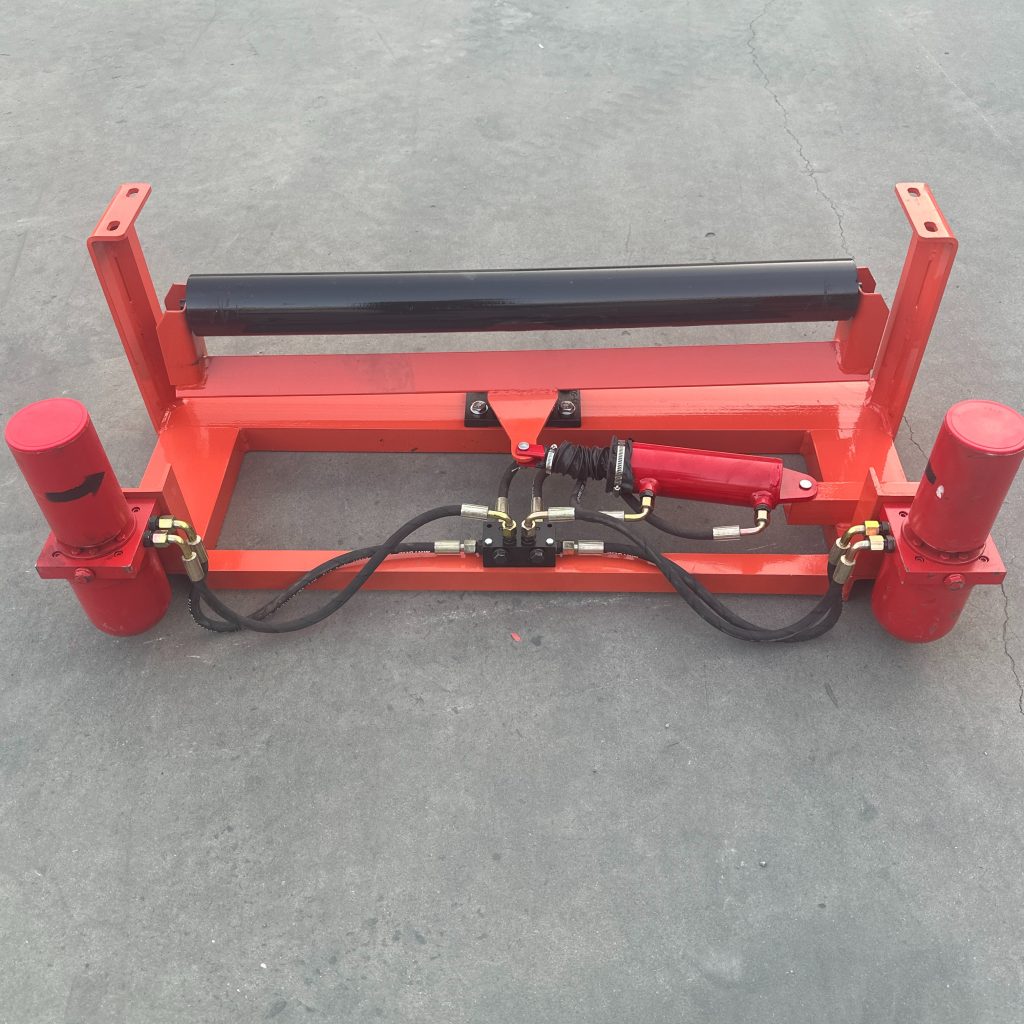

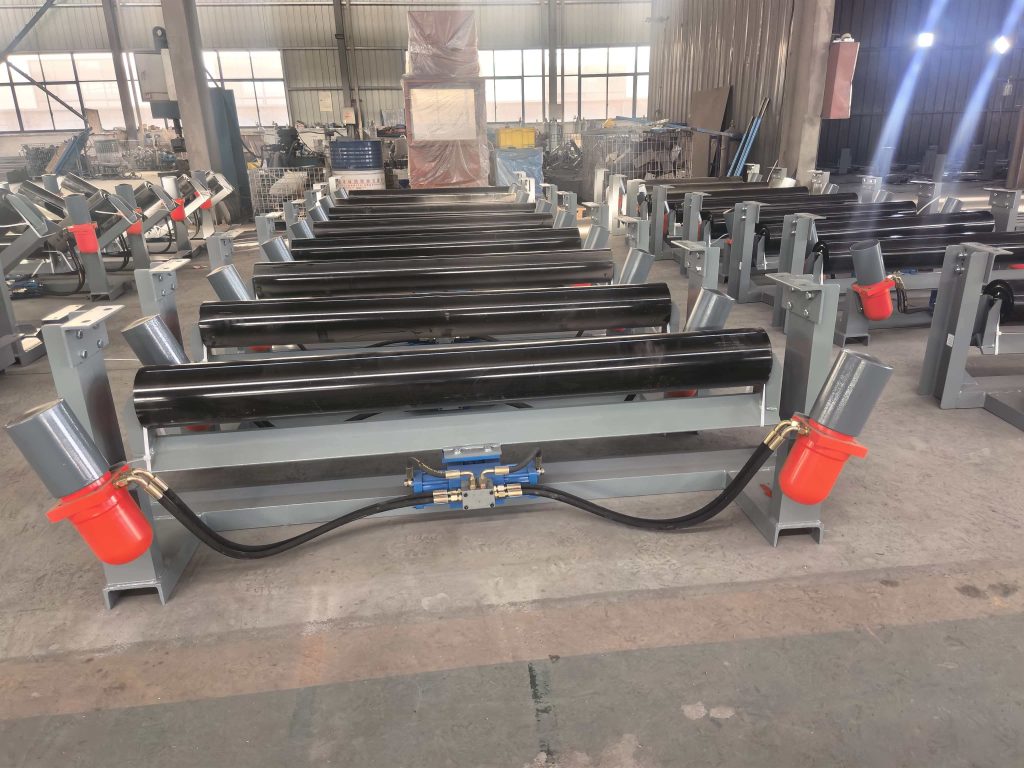

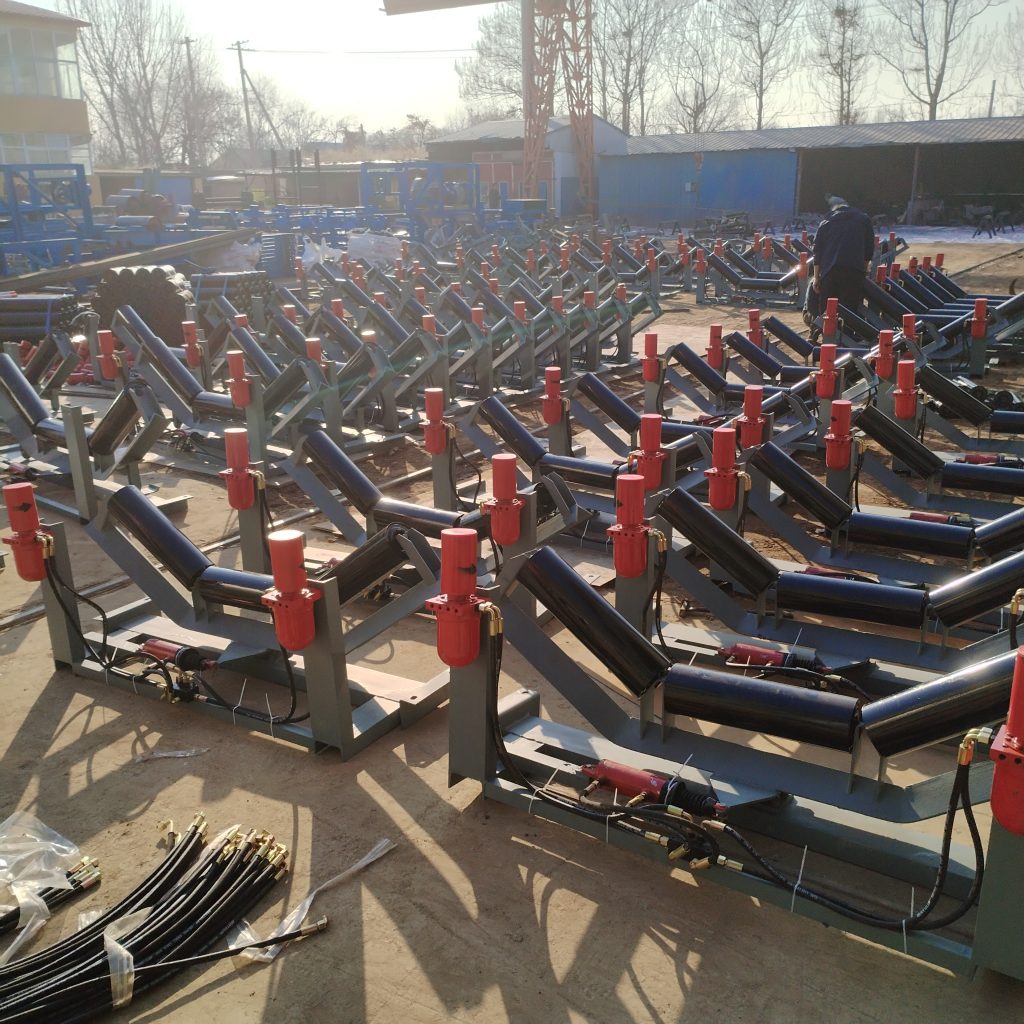

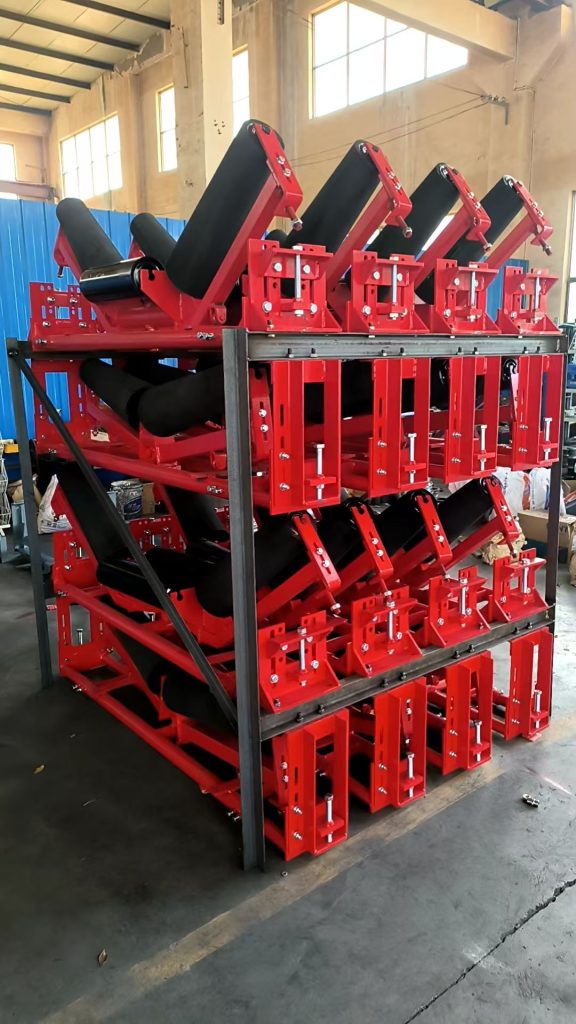

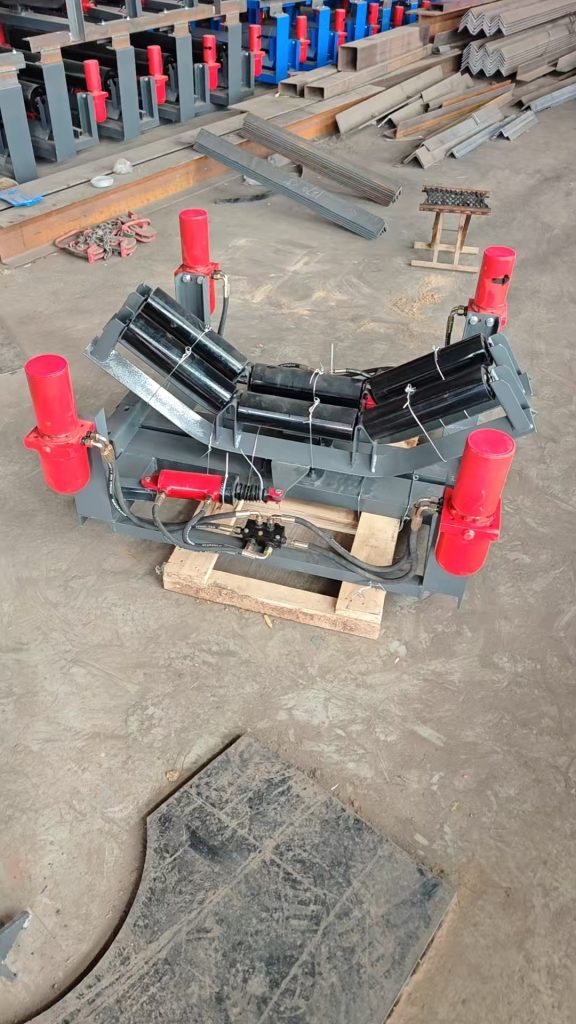

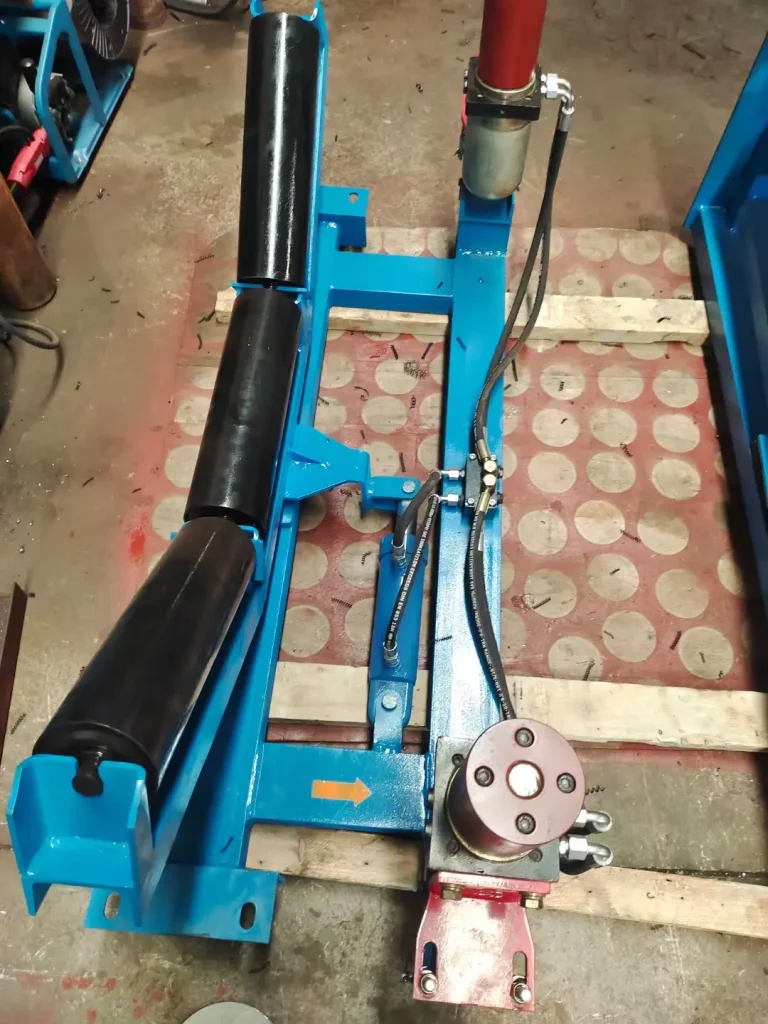

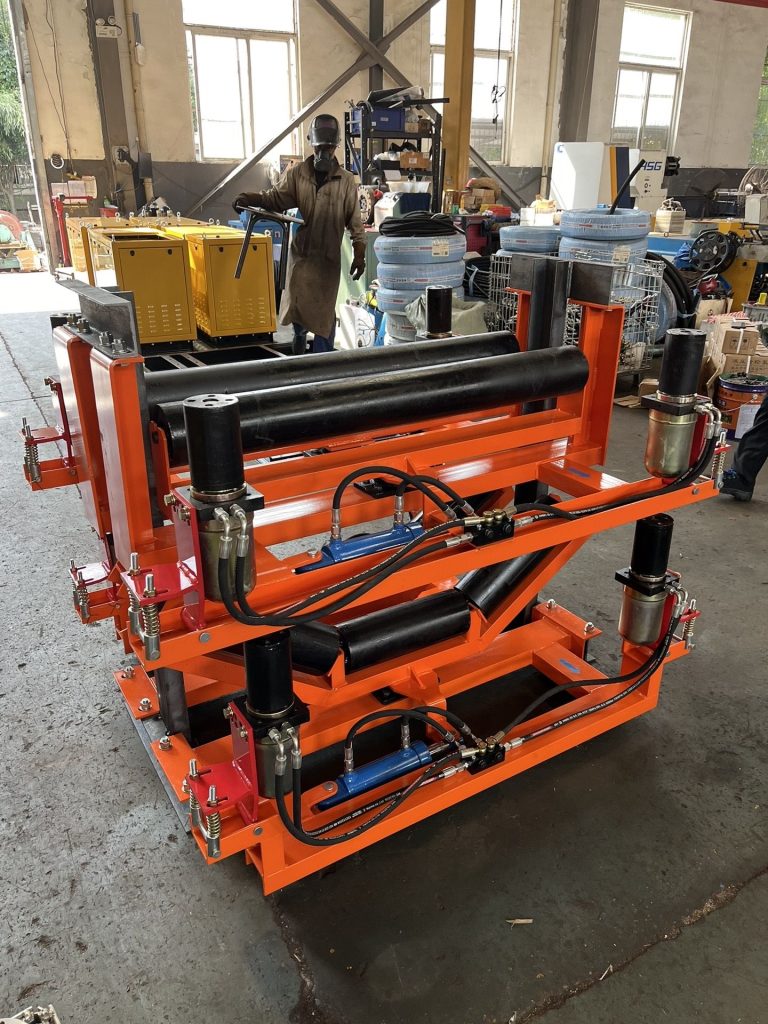

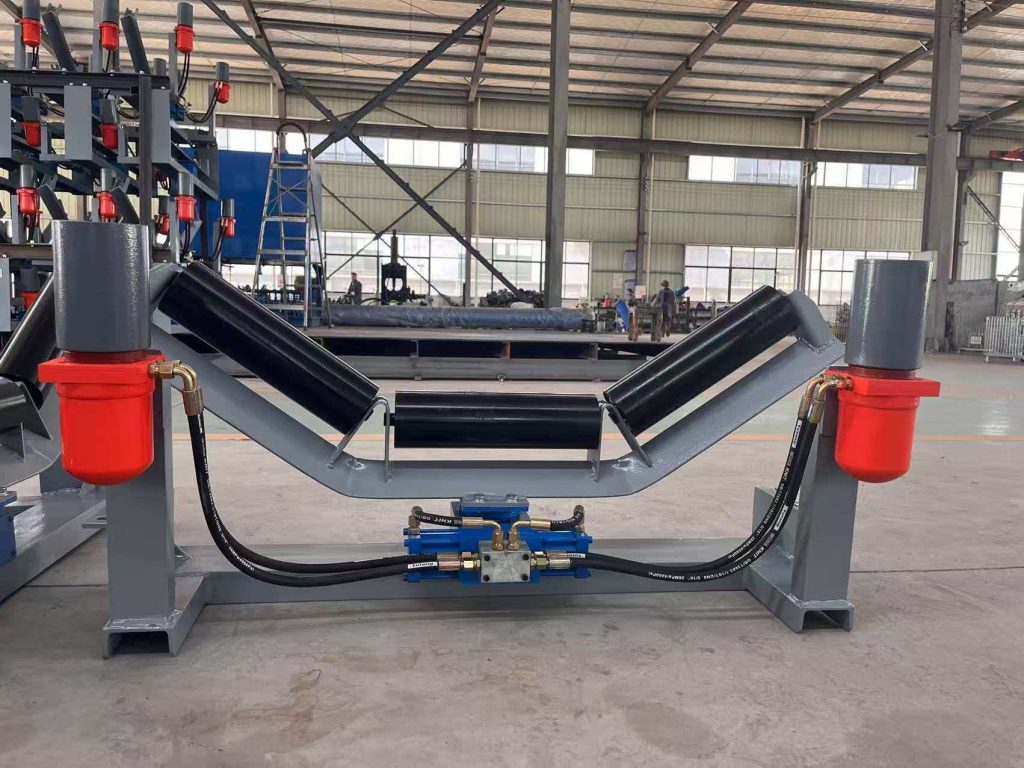

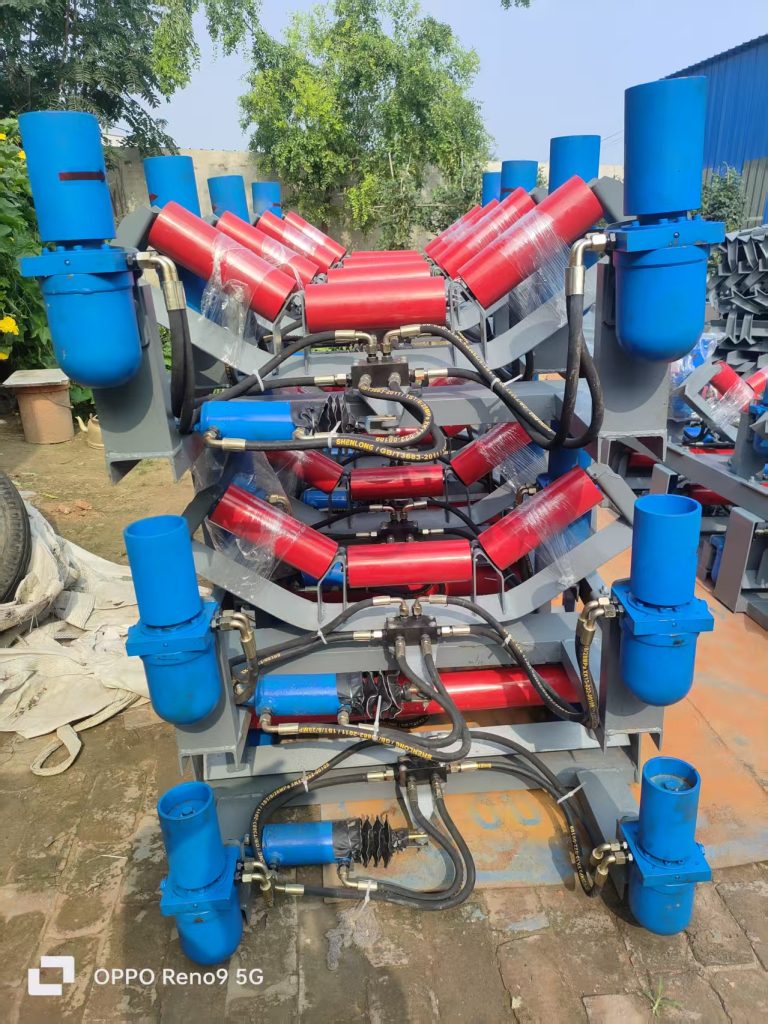

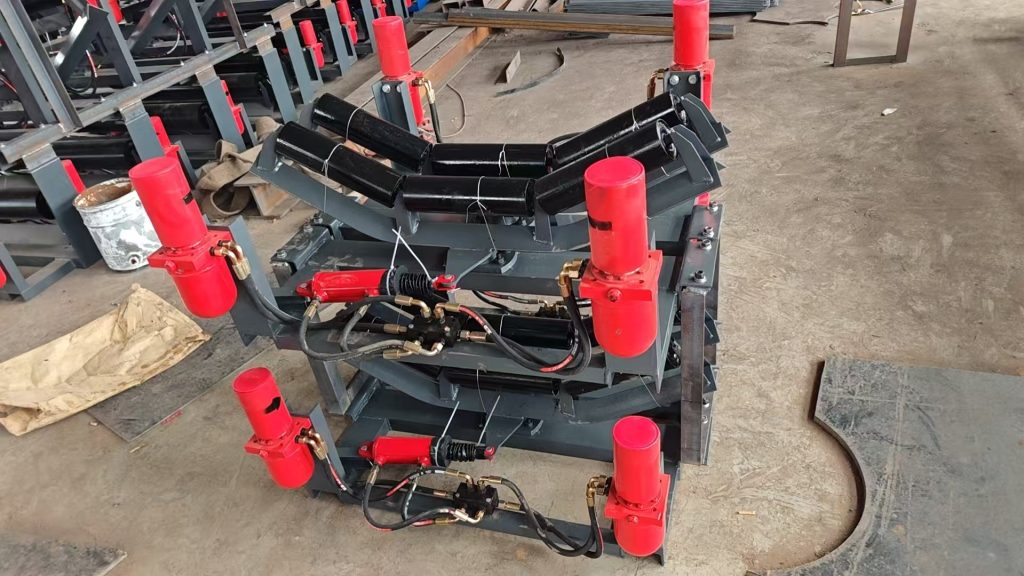

Conveyor Belt Tracking / Alignment Device

Overview
The conveyor belt tracking device is a crucial solution for preventing belt misalignment and ensuring stable operation. Misaligned belts can cause material spillage, equipment wear, and downtime, affecting overall productivity. This device automatically corrects belt deviation, keeping the belt centered and running smoothly. It is widely used in mining, power plants, ports, cement plants, and bulk material handling systems.

Key Features

• Automatic Correction: Detects belt deviation and adjusts rollers or frame to restore central alignment.
• Hydraulic / Mechanical Options: Available as hydraulic, electric, or mechanical self-aligning systems to suit different applications.
• Durable Construction: Designed for heavy-duty operation in harsh environments.
• Easy Installation & Maintenance: Modular design allows quick setup and minimal maintenance.
• Enhanced Safety: Prevents belt tearing, material spillage, and reduces the risk of accidents.

Main Components

• Hydraulic cylinder
• Hydraulic power unit
• Belt misalignment detection device (sensor / limit switch)
• Control system
• Adjustable frame / pivot mechanism

Applications

• Mining: coal, ore, and bulk material handling
• Ports & Terminals: efficient loading and unloading operations
• Cement & Power Plants: continuous material transport
• Industrial Conveyors: any application where belt misalignment can occur

Benefits

• Reduces maintenance costs and downtime
• Increases belt lifespan
• Improves operational efficiency
• Enhances safety for operators and equipment

Optional Configurations

• Explosion-proof design for hazardous areas
• Heavy-duty hydraulic stations for long-distance conveyors
• Remote monitoring and control
• Dual-side correction for large or wide belts
