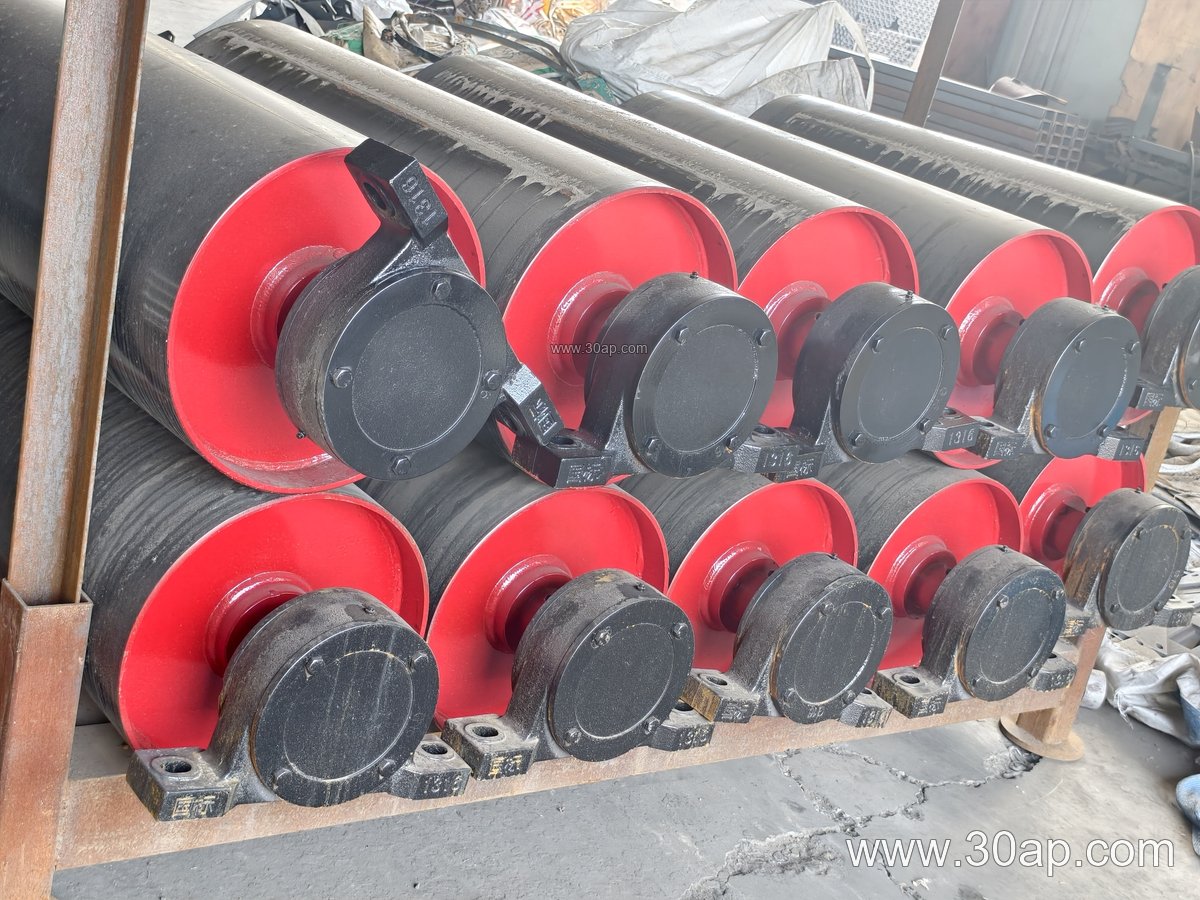

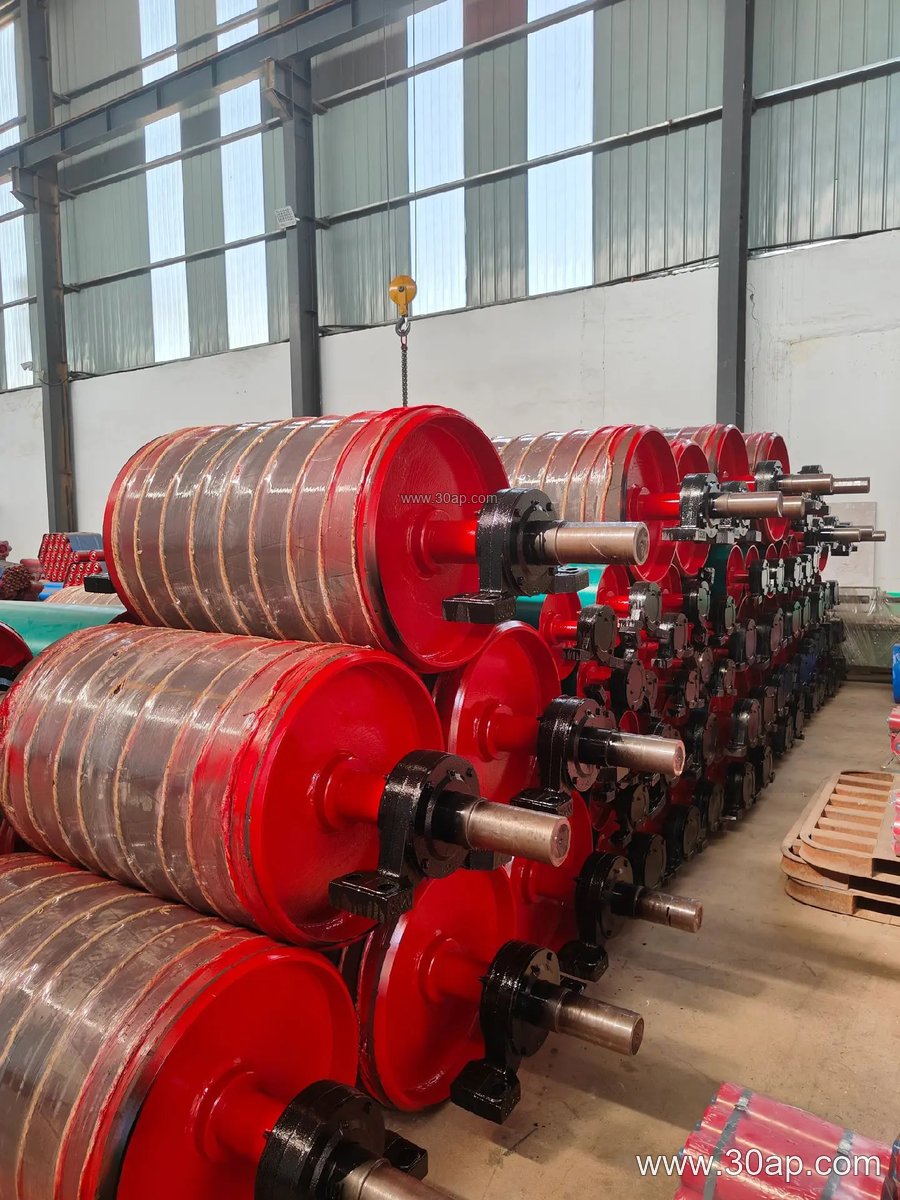

A Large Pulley for Demanding Conveyor Duty
A 1250mm diameter conveyor pulley is one of the larger drum sizes used on bulk material belt conveyors. It sits at a key point in the system, most often as a drive or head pulley, and its size reflects the loads and belt tensions involved on high-capacity circuits. In a coal preparation plant, a limestone quarry, or a power station coal yard, this diameter is chosen when the conveyor belt and the material load require a robust drum with substantial wrap and torque capacity.
The same product can be described as a Ø1250 conveyor drum or a 1250mm belt conveyor pulley. These are simply alternative names for the same component, not different product types.
How the Drum Is Built
A pulley of this diameter is usually fabricated from rolled steel shell sections, welded to end discs, with a shaft pressed and keyed into machined hubs. The shell wall thickness, disc design, and hub arrangement are determined by the calculated belt tension and torque rather than by diameter alone. Larger drums often use a turbofan or wing-type end disc arrangement to help shed material and reduce build-up in dusty service.
Surface treatment is a major part of the specification. Plain (smooth) shells are used where slip is not critical; rubber lagging in hot vulcanized, cold bonded, or diamond and herringbone patterns improves grip and protects the shell. Ceramic lagging is another option for wet or abrasive conditions. Lagging thickness commonly ranges from 8 mm to 20 mm depending on duty.
Where It Fits in the Conveyor
The 1250mm diameter conveyor pulley is mainly applied at the head or drive position on medium to high capacity conveyors. It may also serve as a bend pulley in some layouts, but a bend pulley has a different role and should not be confused with a drive or tail pulley. In a crushing and screening circuit or a cement clinker line, this size is often paired with a wide conveyor belt and heavy-duty idler roller sets to carry large tonnages over long distances.
The pulley is mounted on a conveyor bracket or frame, and alignment with the belt and the surrounding idlers is critical for even belt tracking.
Typical Size Reference
The following values are common industry references, not fixed supply promises. Final dimensions depend on the conveyor design and the manufacturer.
| Parameter | Common Reference Values |
|---|---|
| Pulley diameter | Ø1250 mm |
| Belt width range (examples) | B1200, B1400, B1600, B1800, B2000 |
| Shell face width | Typically wider than belt width, e.g. about 1400 mm for B1200 |
| Lagging type | Plain, hot vulcanized rubber, cold bonded rubber, diamond, herringbone, ceramic |
| Lagging thickness | 8, 10, 12, 15, 20 mm |
| Shaft diameter | Determined by torque and load, common sizes Ø120 to Ø200 mm |
Note that a given belt width is not tied to one pulley diameter. A B1400 belt might run with a Ø1000 drum on a short conveyor or a Ø1250 drum where wrap and tension demand it.
What Buyers Should Check
- Confirm the calculated belt tension, torque, and shaft load before fixing the drum size.
- Specify the lagging type and thickness for the actual material and moisture conditions.
- Check shell face width against belt width and the conveyor frame dimensions.
- Ask for the balancing grade and inspection records for the finished pulley.
- Match the pulley to the conveyor belt splice and the take-up arrangement.
In short, the 1250mm diameter conveyor pulley is a heavy-duty drum suited to high-tension positions on bulk conveyors. Correct selection depends on the full conveyor design, not on diameter alone.
